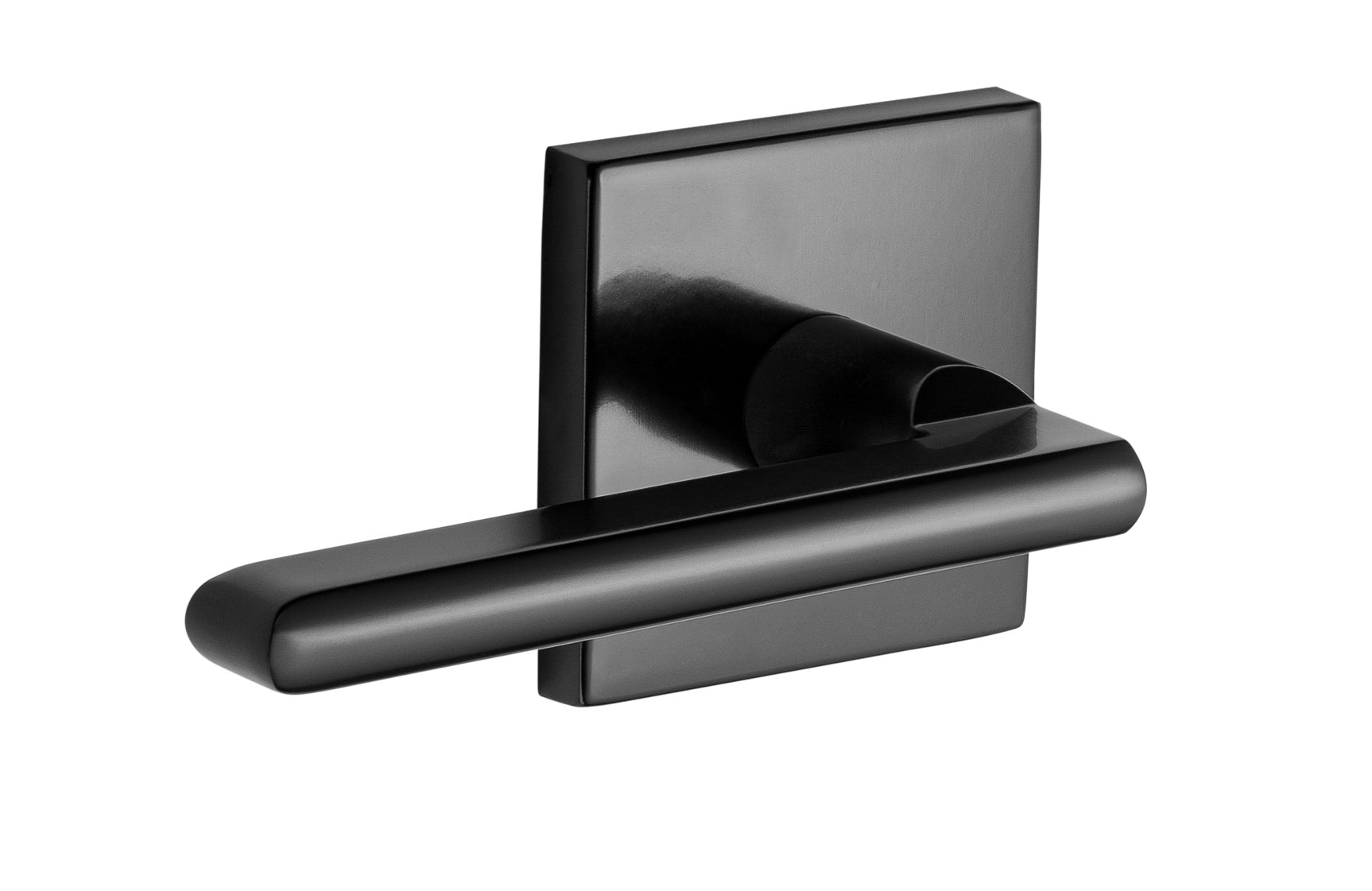

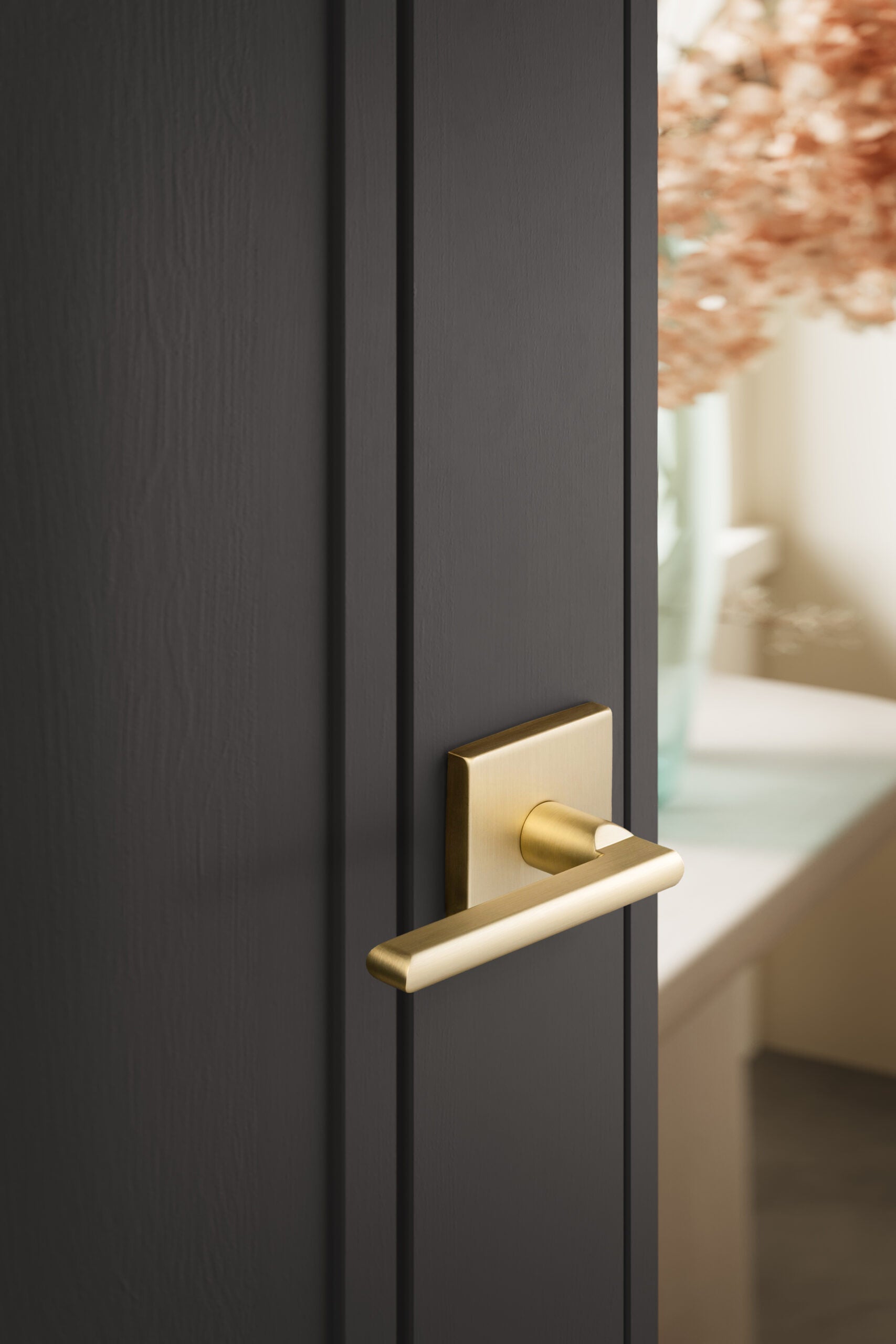

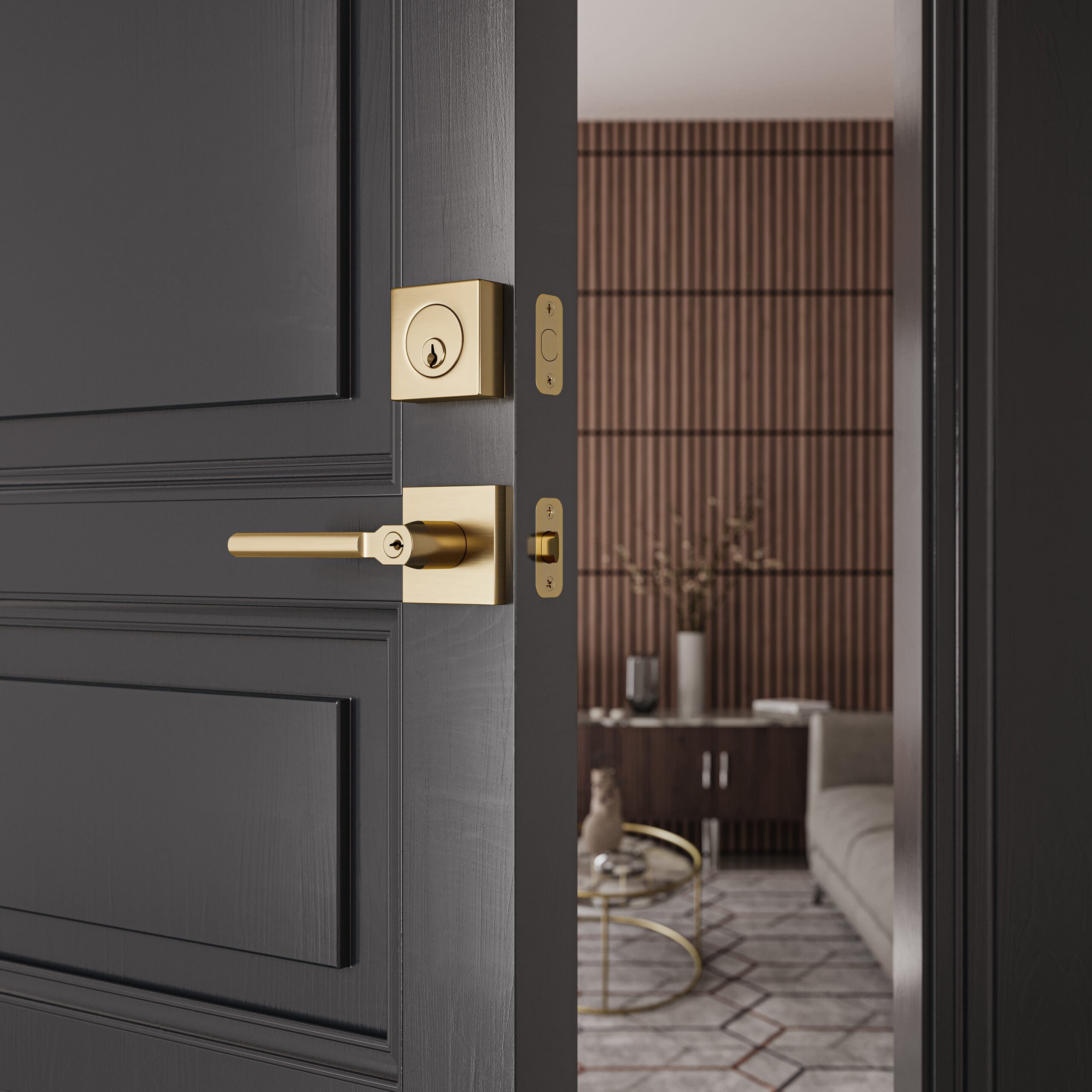

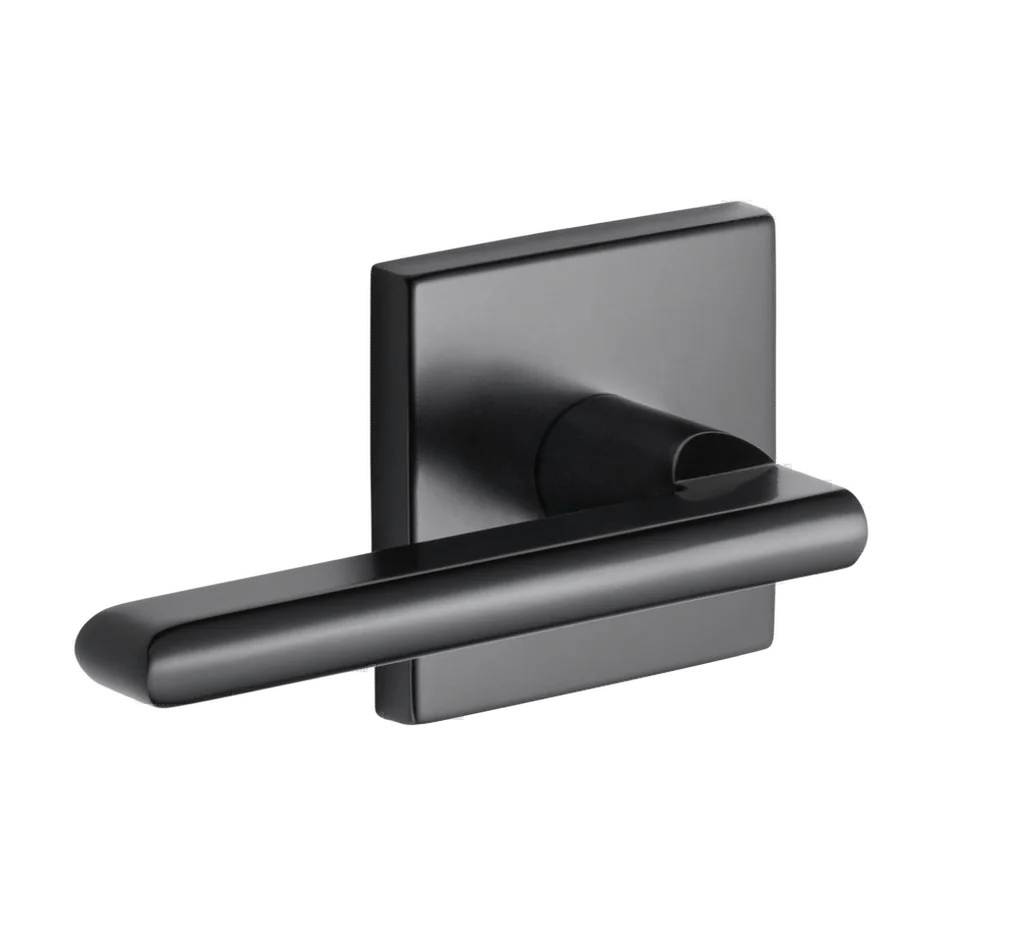

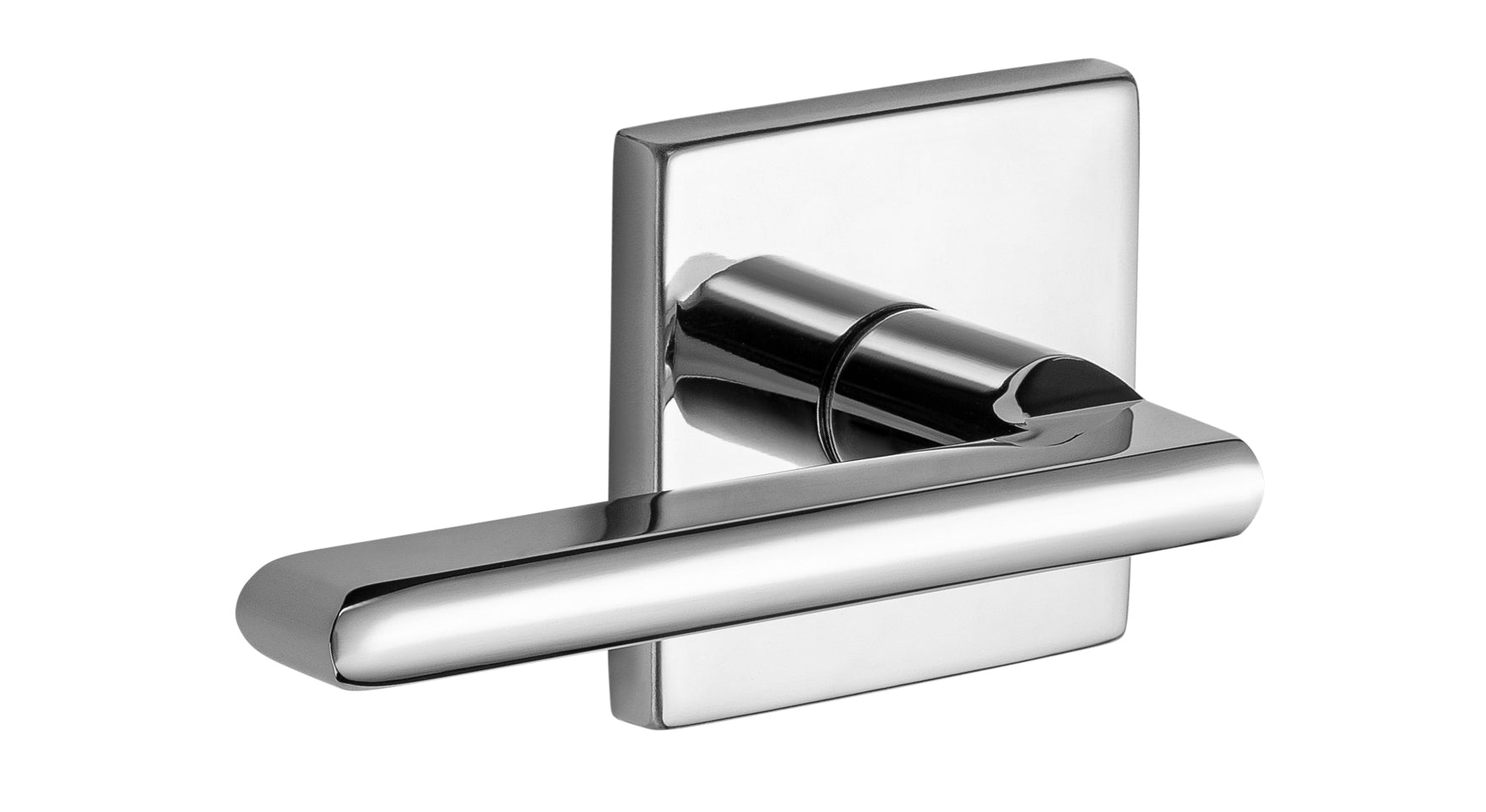

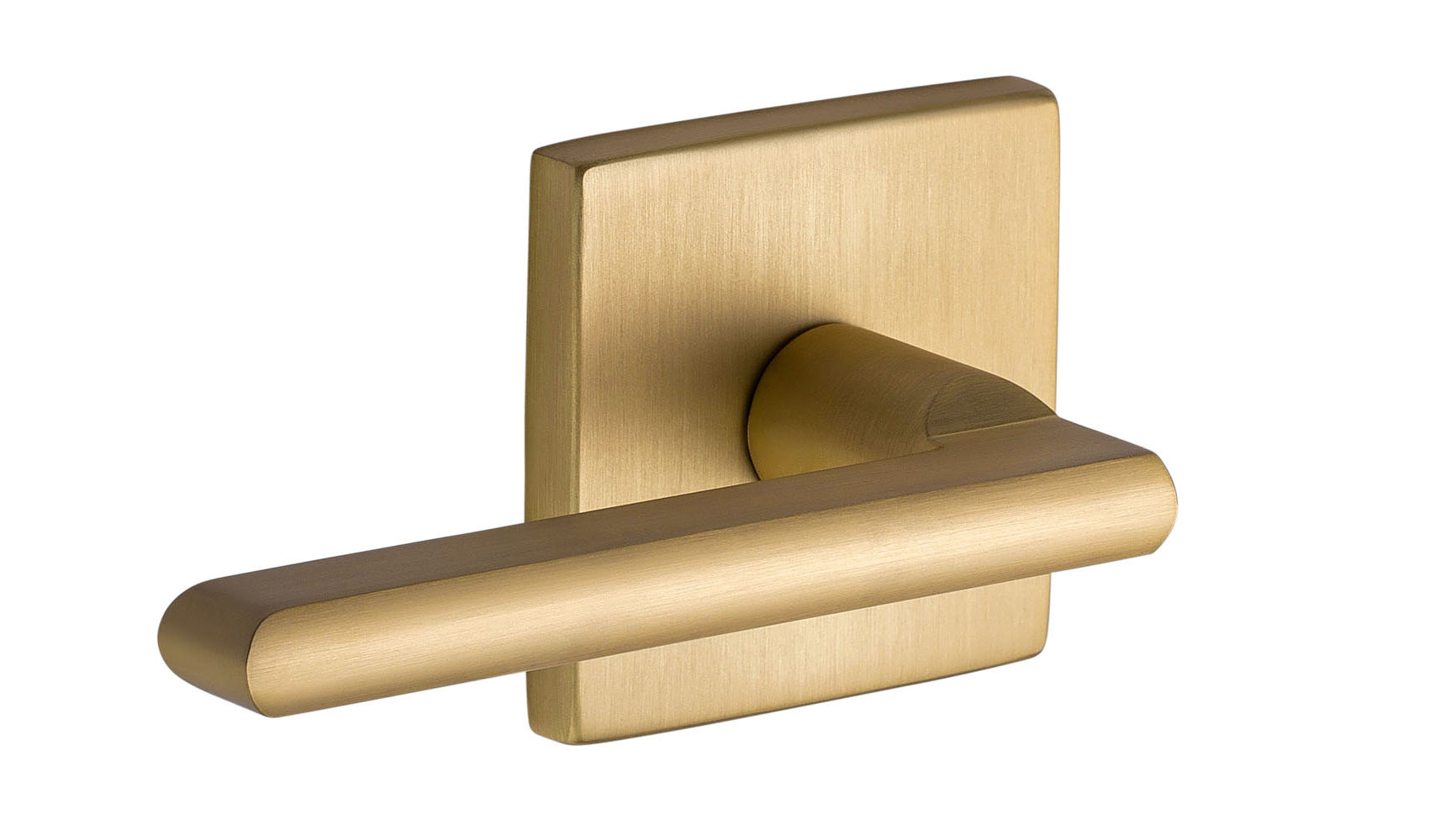

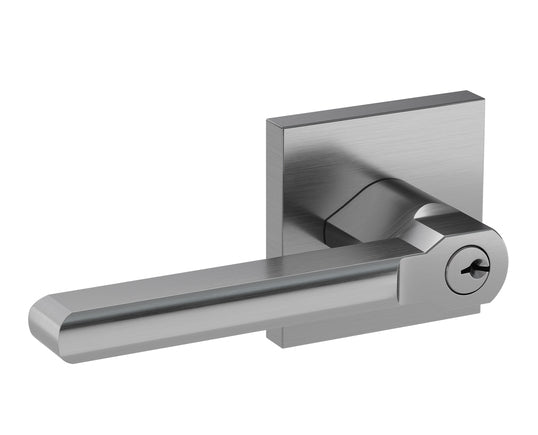

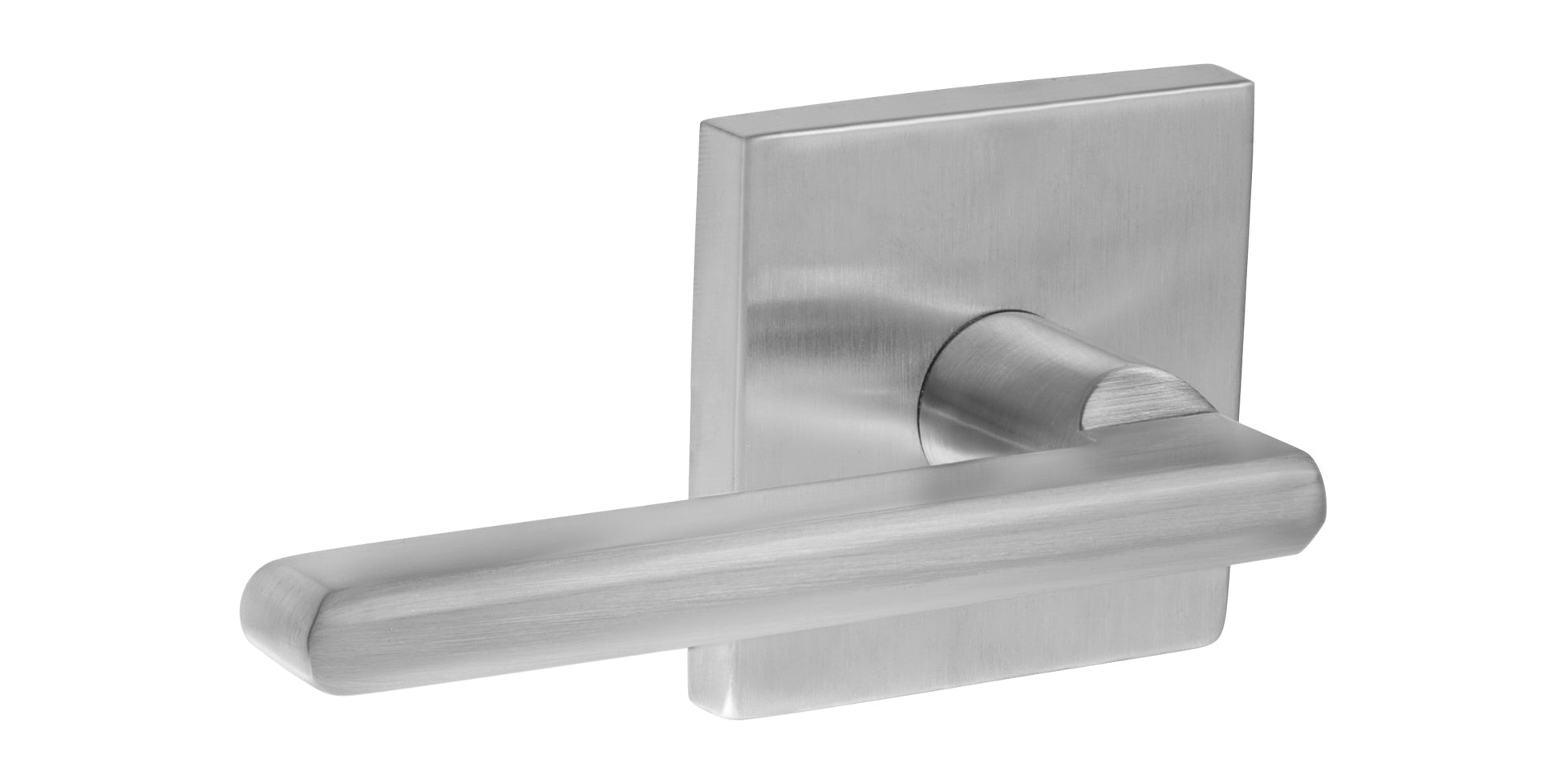

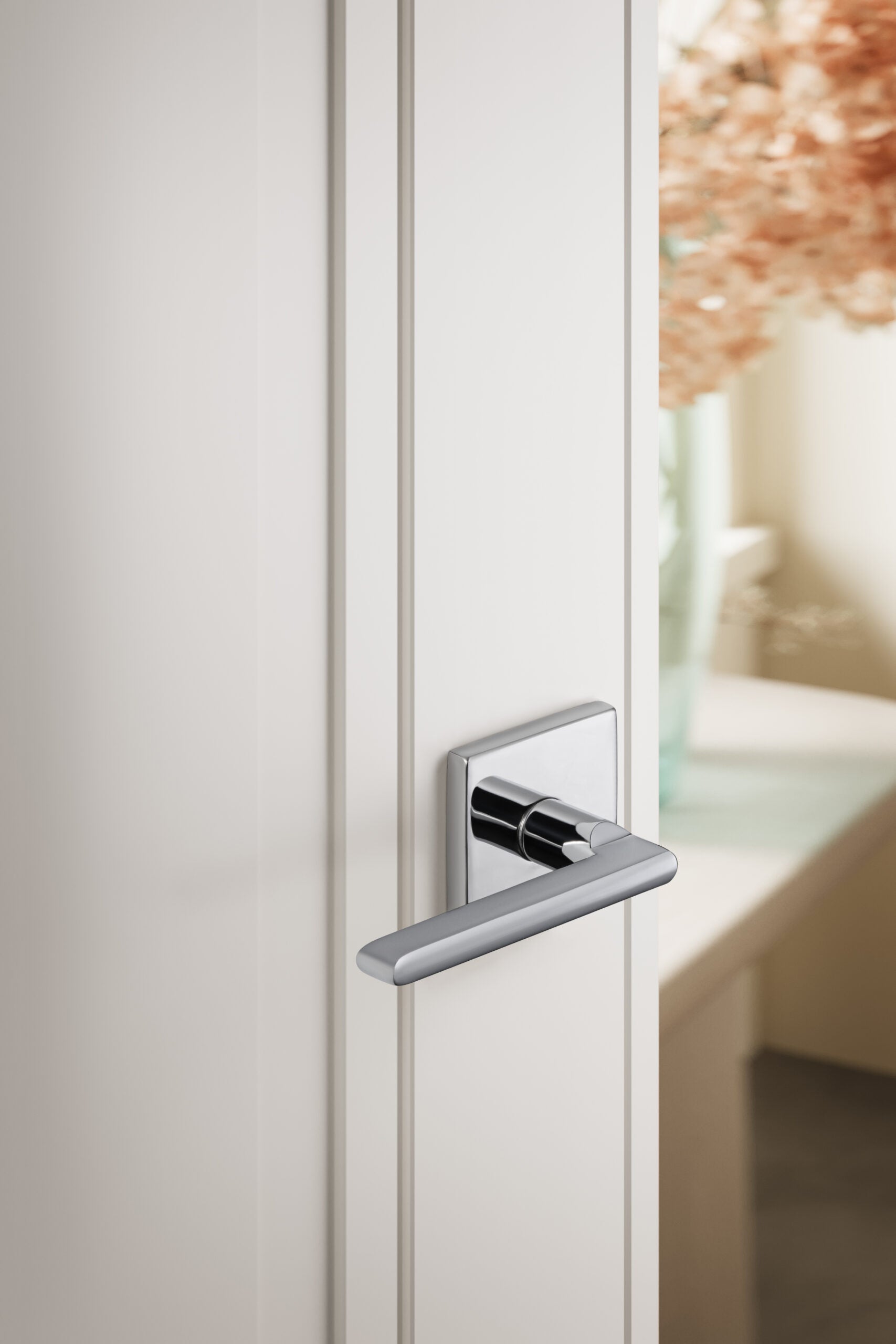

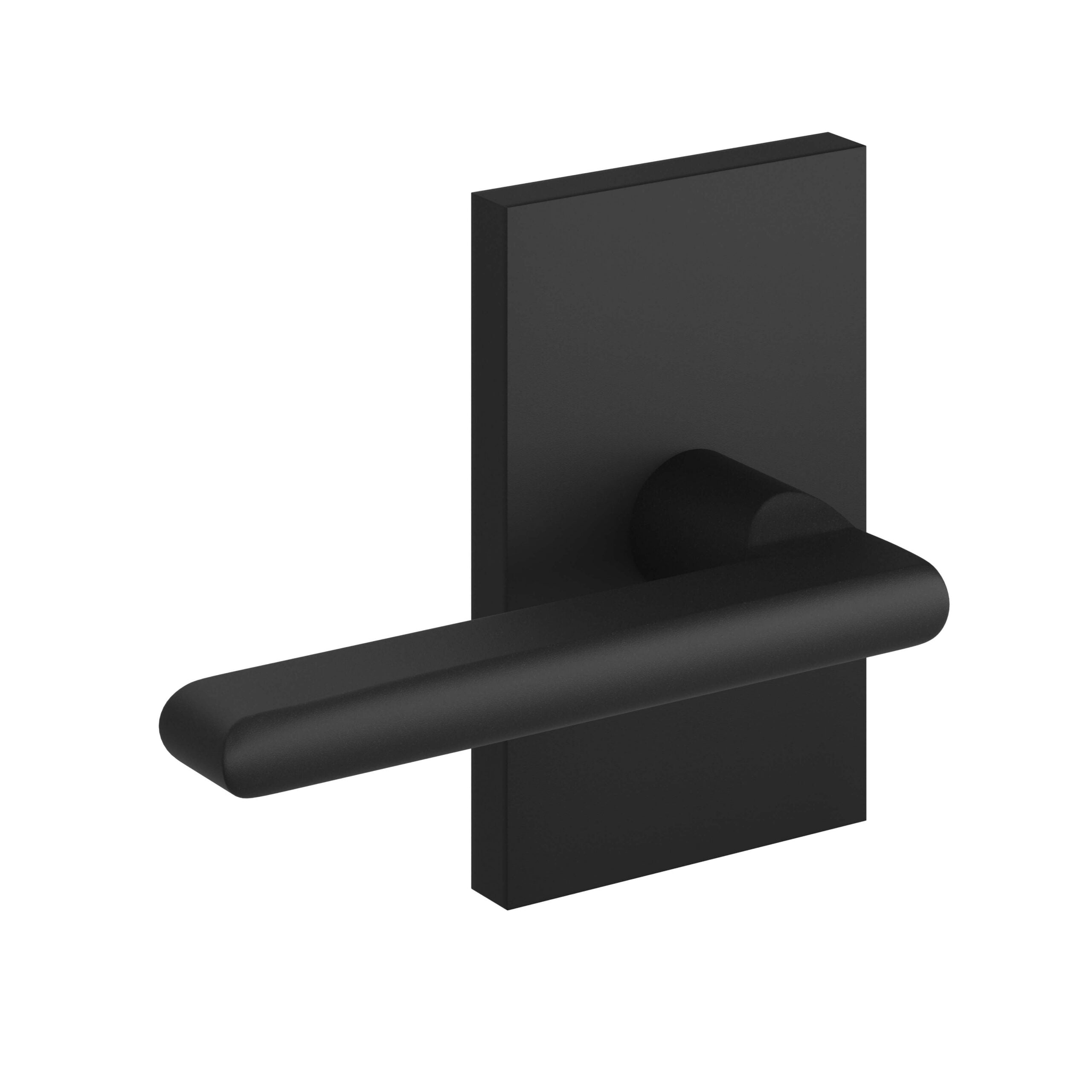

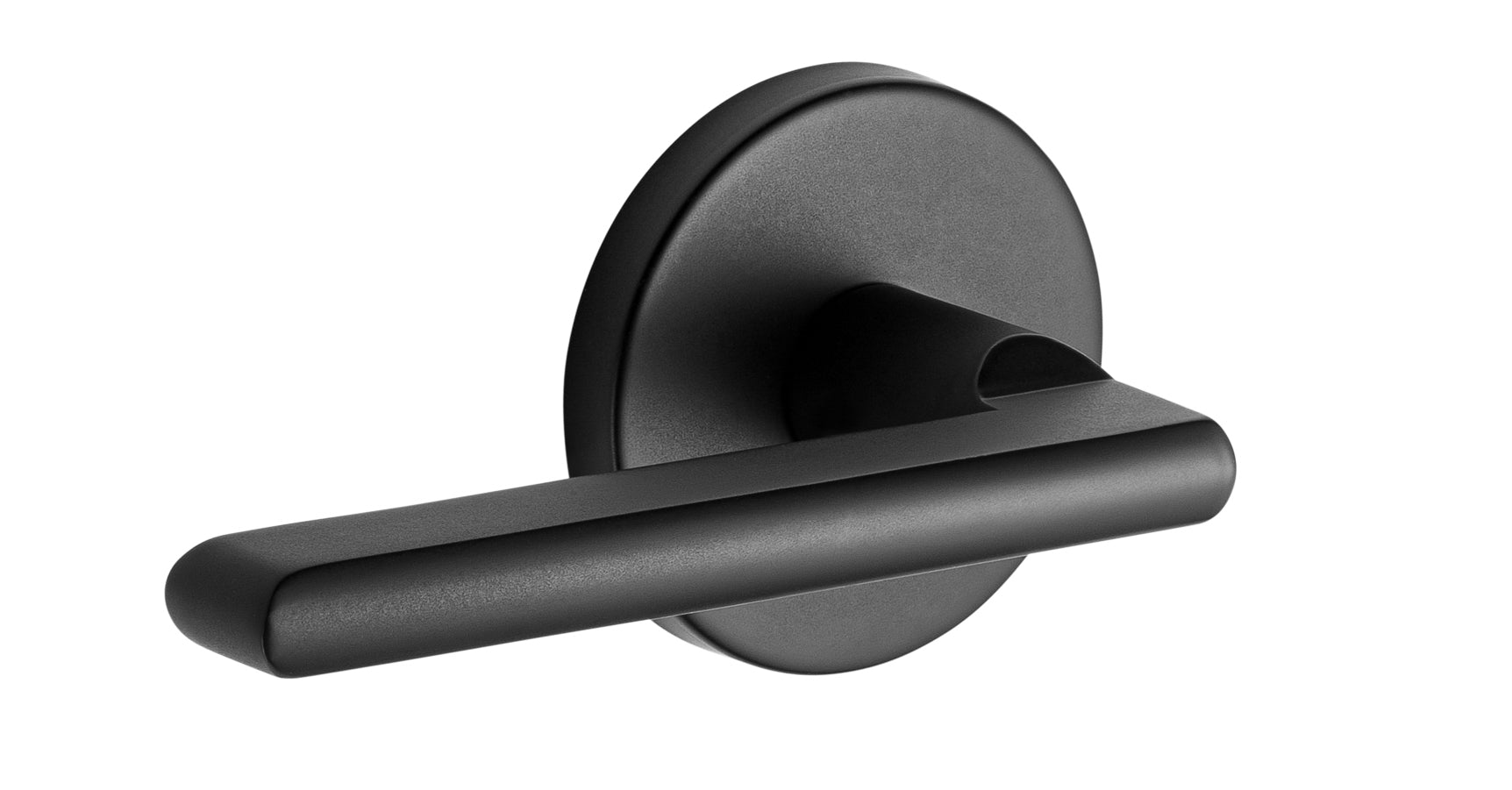

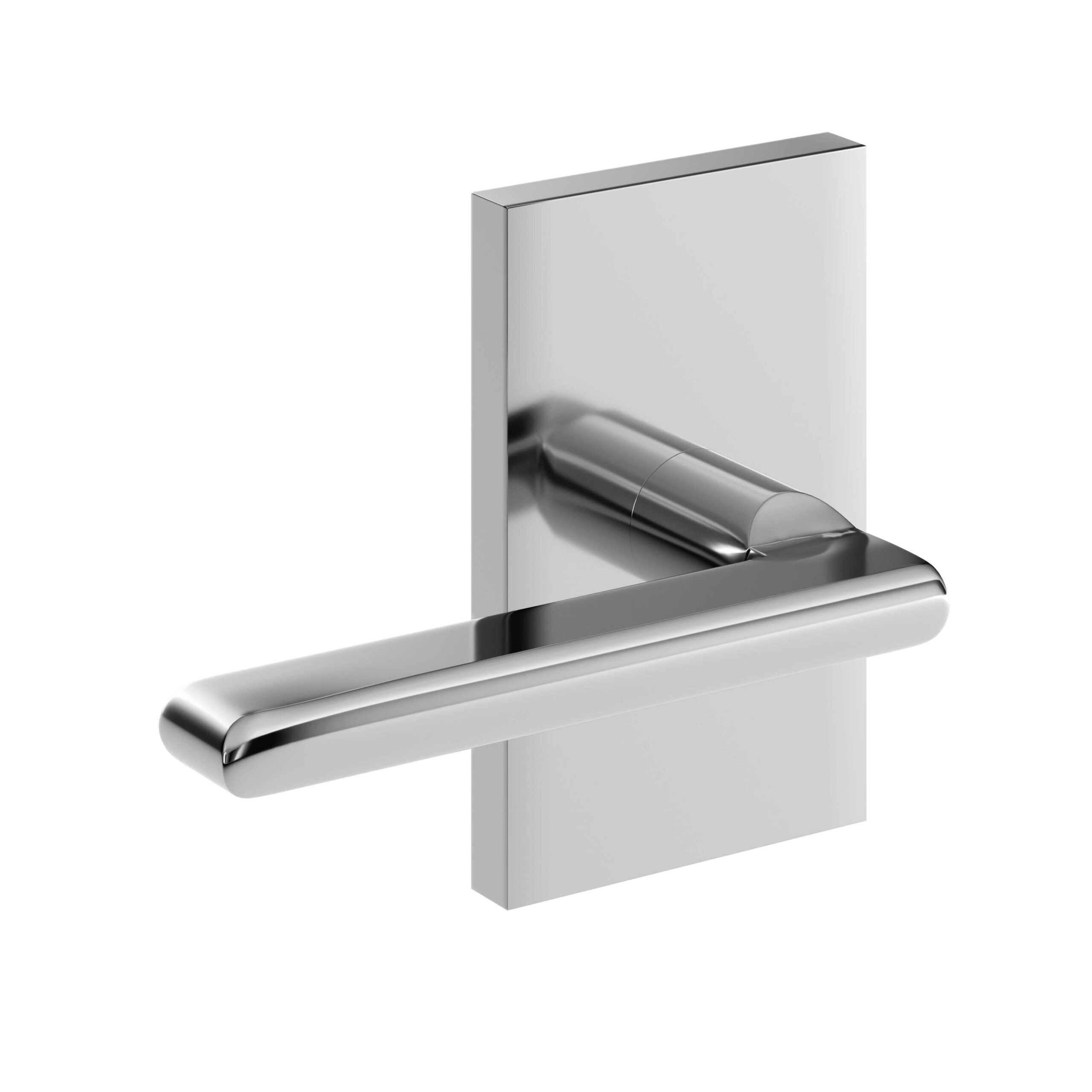

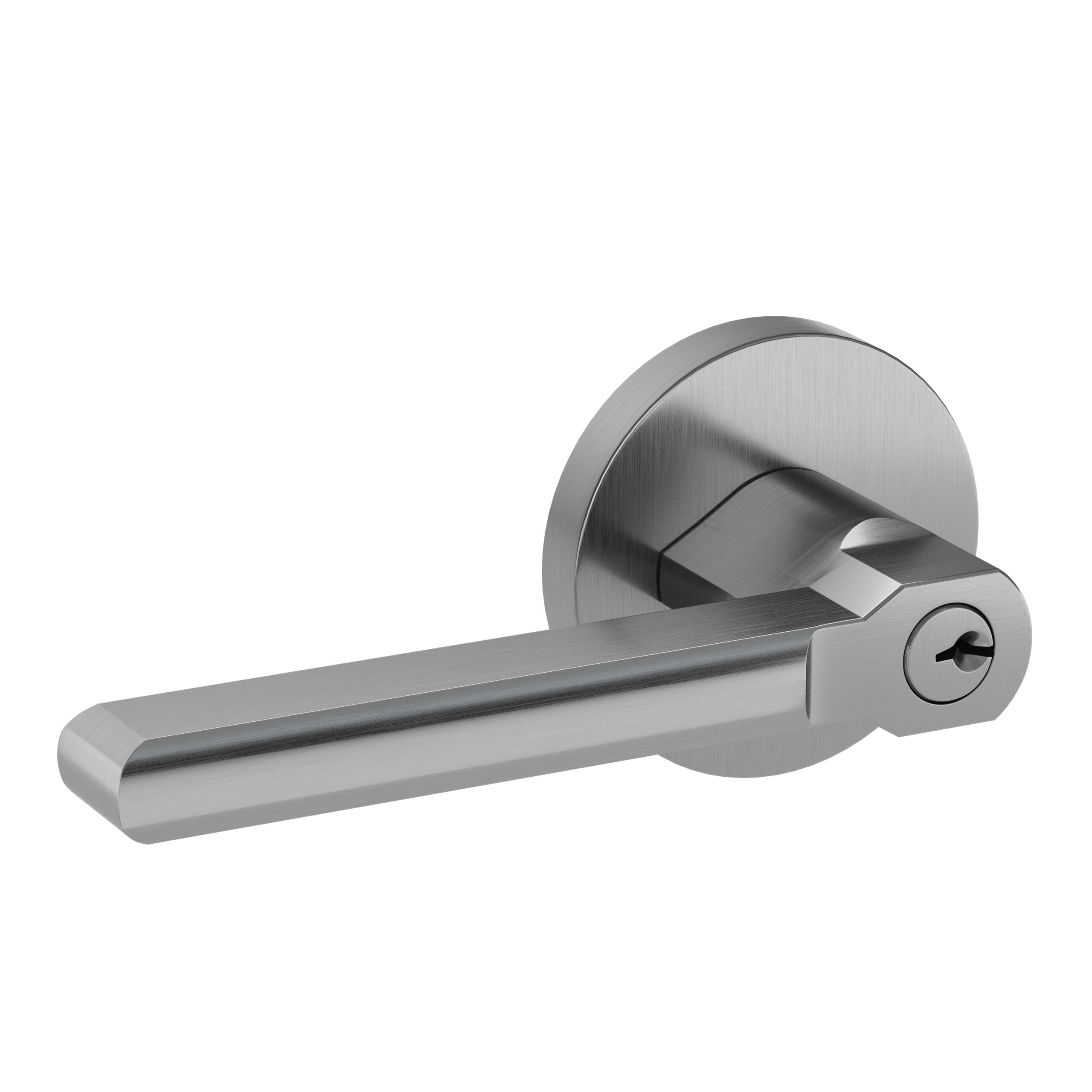

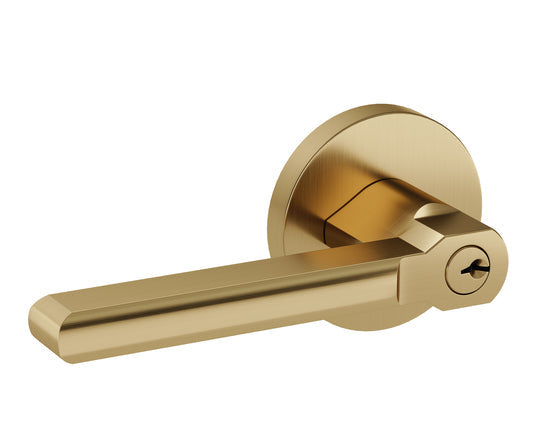

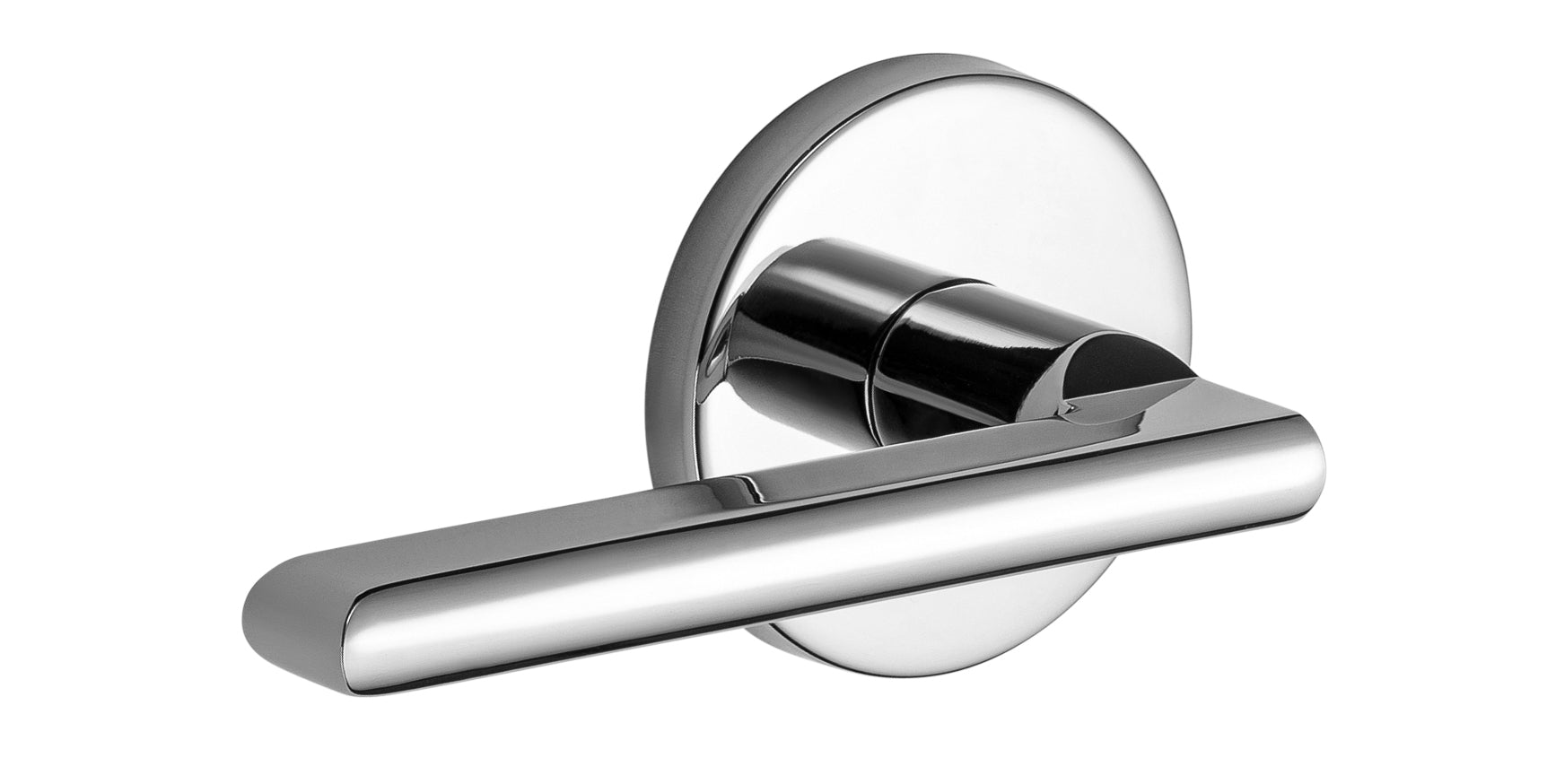

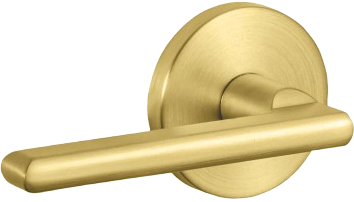

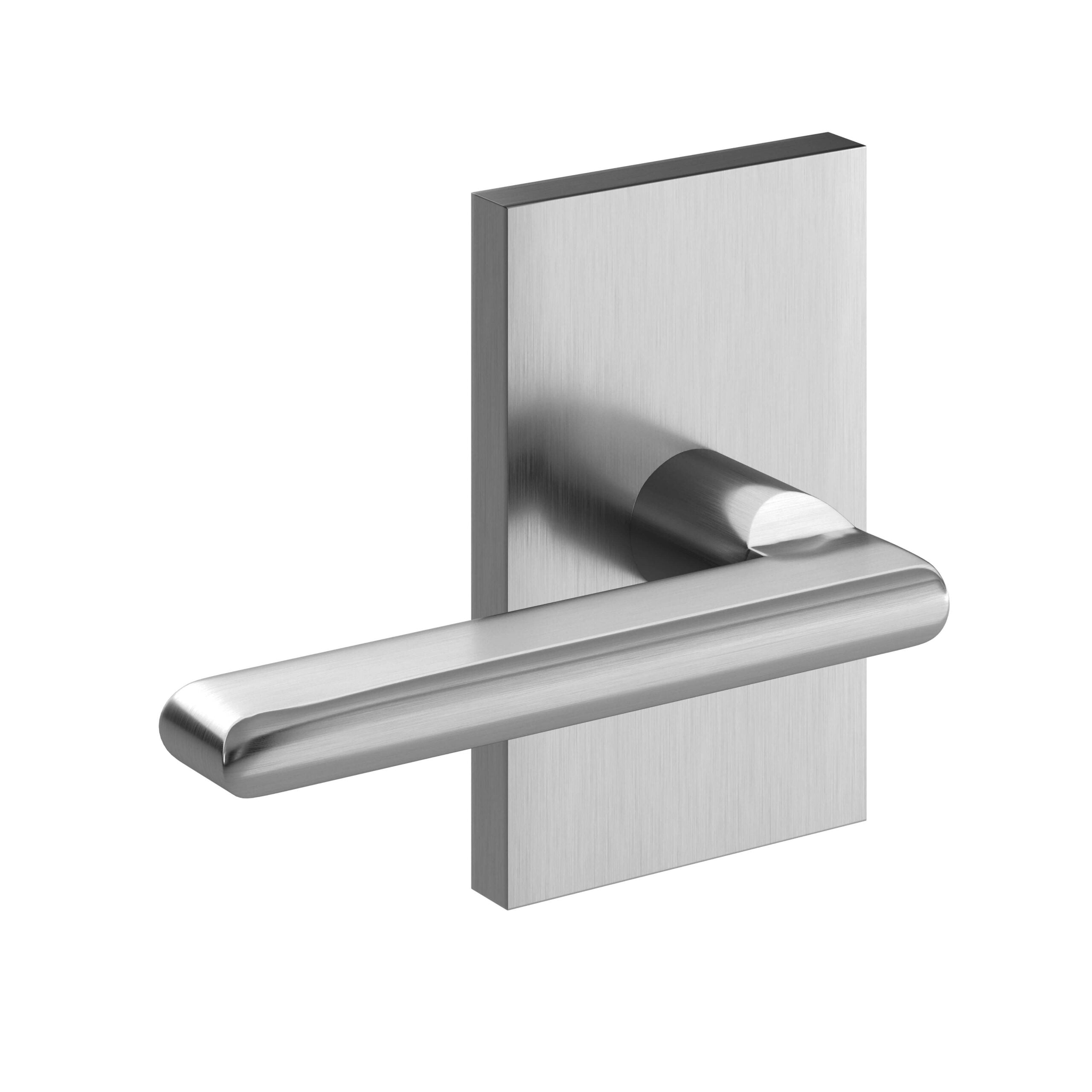

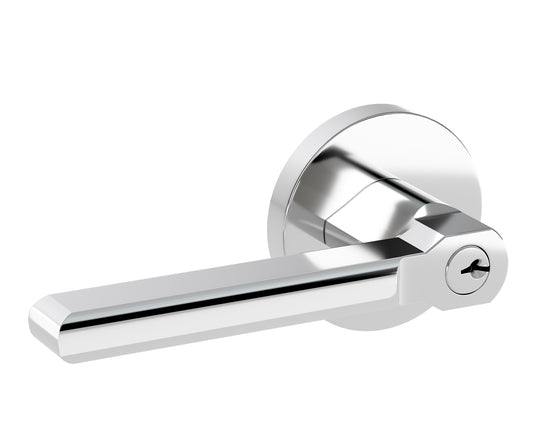

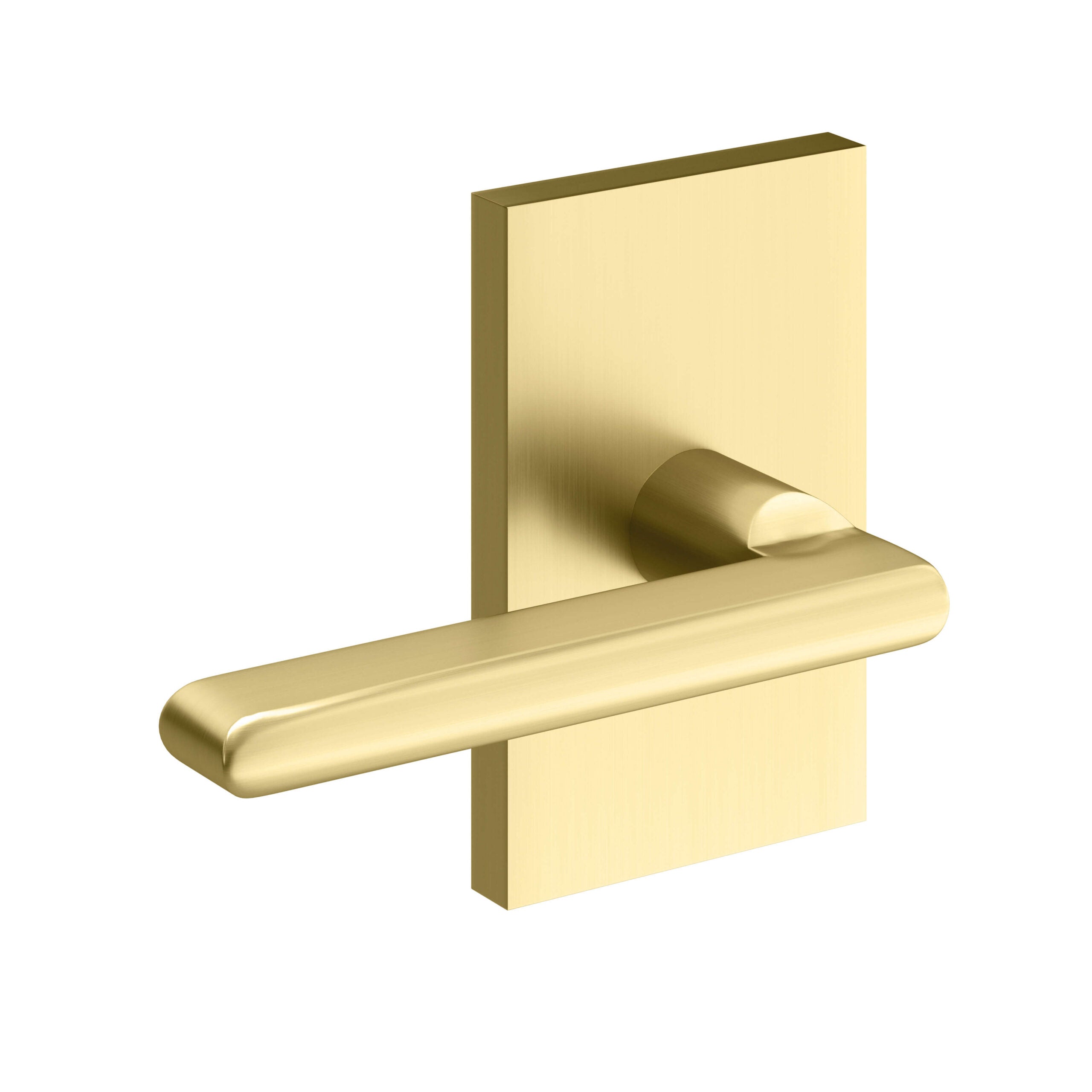

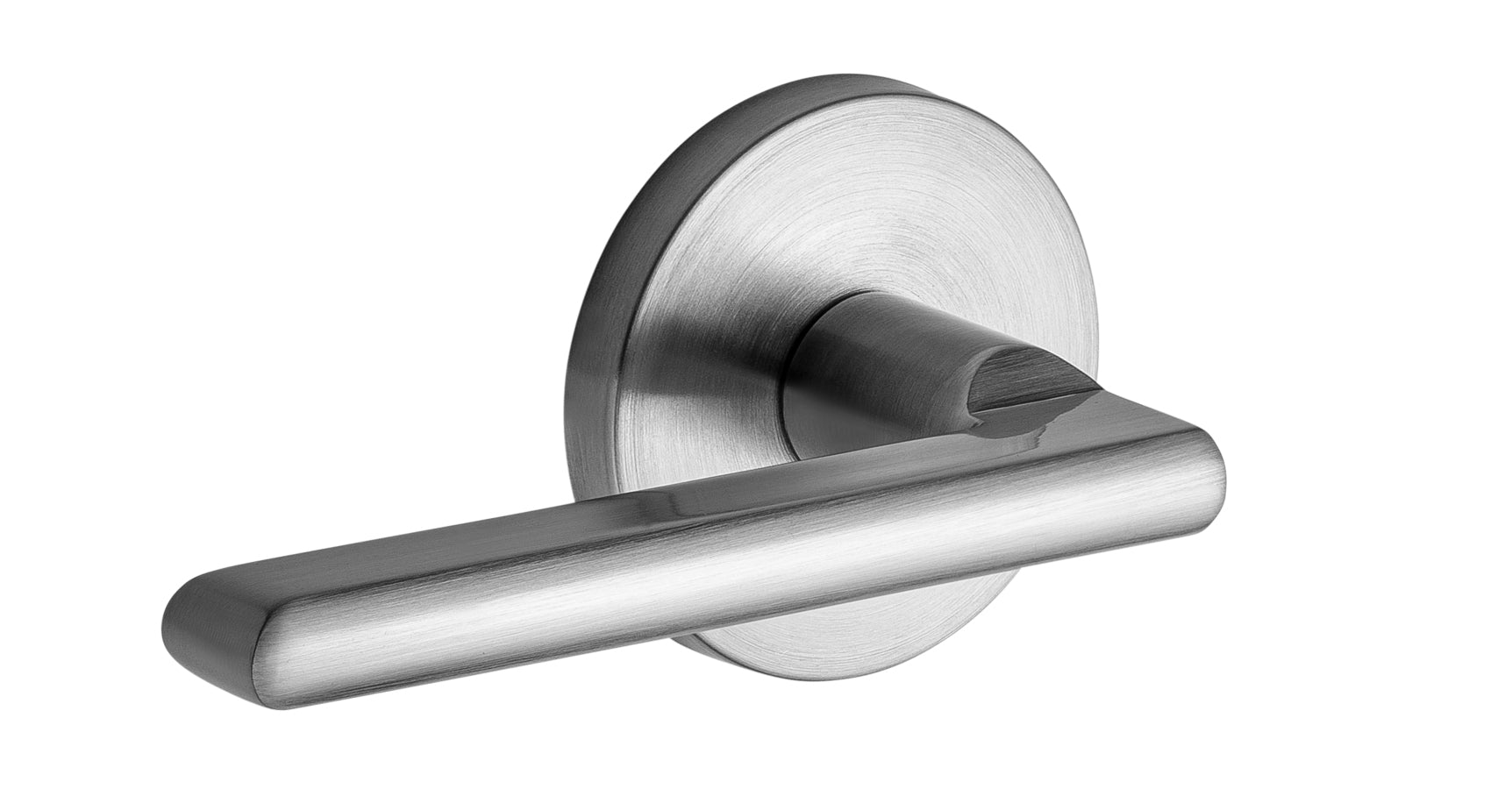

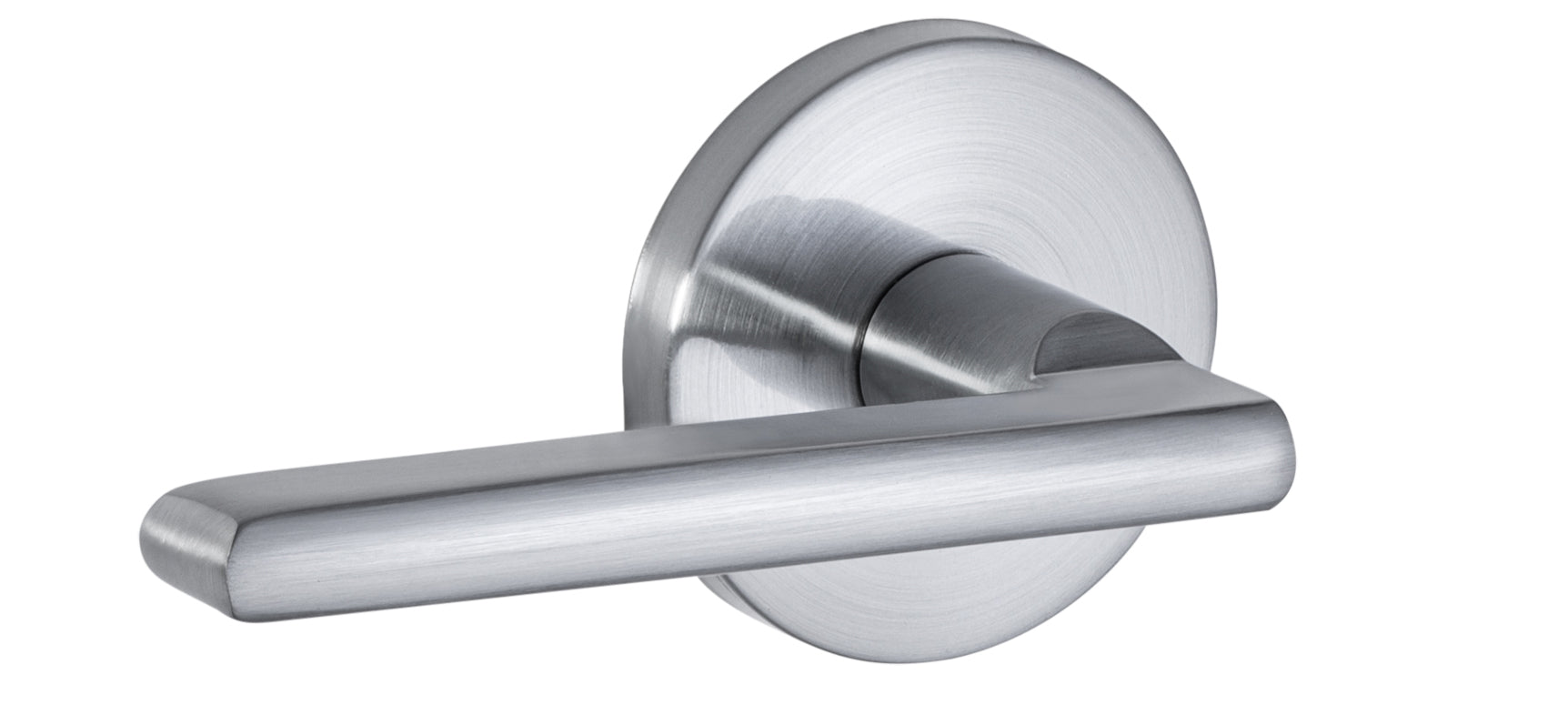

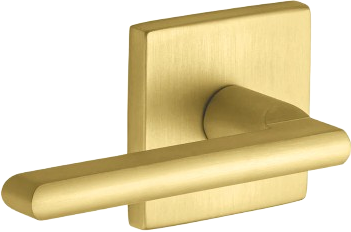

Embelle Tafele Lever

With its clean-lined rosette and well-contoured lever, Tafele is a beautiful expression of the Bauhaus design movement. Though simple in form, take a moment to appreciate the subtleties of the lever design: the gentle notch; the seamless transition between the linear and rounded elements; the final fluid curve. Tafele is designed for the truly sophisticated homeowner.

Features:

• Grade 3 (meets or exceeds ANSI A156.2)
• ADA Compliant
• Simple, standard installation
• Solid-cast steel and brass construction
• Durable multi-coat finish withstands antimicrobial cleaning
• Lever length: 4.65"
• Lever projection: 2.30"
• Lever Clearance: 1.67"
• Rosette height: 2.53"
• Rosette width: 2.53"
• Rosette depth: .34"
• Face Plate: 1-3/8 - 1-3/4
• Backset: Adjustable 2-3/8 or 2-3/4
• Cross bore: 2-1/8"
• Edge bore: 1" dia
• Door thickness: 1-3/8 - 1-3/4
